    Super Precision Stainless Steel Screen Printing Mesh Roll With Corrosion Resistance

    Ask Lasest Price
    Brand Name : BJPFM
    Model Number : PFM-SSPM-300 Mesh
    Certification : SGS
    Price : USD2.54-10.62 Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000Meter/Month
    Delivery Time : 3-5 days after payment if there is in stock
    • Product Details
    • Company Profile

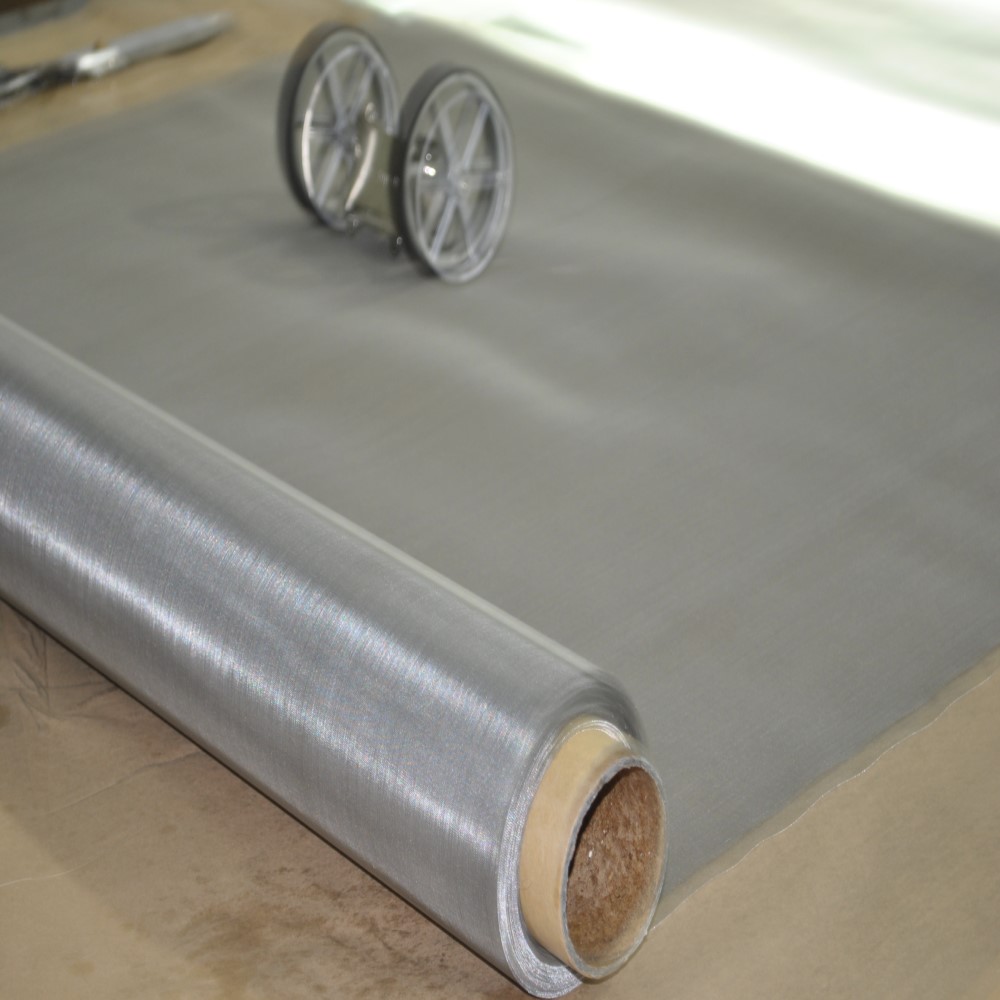

    Super Precision Stainless Steel Screen Printing Mesh Roll With Corrosion Resistance

    300 mesh 304 316L Stainless steel suqare screen printing wire mesh


    1. Stainless Steel Square Screen Printing Mesh Description


    Stainless steel printing screen has more excellent performance and strong adaptability than polyester printing screen , which is suitable for high-precision printing and working in harsh environment


    Super Precision Stainless Steel Screen Printing Mesh Roll With Corrosion Resistance


    Super Precision Stainless Steel Screen Printing Mesh Roll With Corrosion Resistance


    2. Stainless Steel Square Screen Printing Mesh Features


    1. High tension . Much higher tension than common polyester mesh
    2. Super precision . Uniform wire diameter and aperture with extremely low difference
    3. Low elongation . Very small elongation of wire mesh at high tension
    4. Wear resistance , corrosion resistance and long service life
    5. Non-electrostatic


    3. Stainless Steel Square Screen Printing Mesh Specification


    Stainless Steel Printing Mesh

    Mesh/inch

    Wire? Dia.
    (μm)

    Opening (μm)

    Open Area
    (%)

    Thickness
    (μm)

    Through ink
    (cm3/m2)

    Calender thickness
    (μm)

    80ⅹ80

    90

    228

    52

    198-207

    103.0

    168-170

    80ⅹ80

    120

    198

    39

    276-288

    92.9

    228-230

    100ⅹ100

    100

    154

    36.8

    230-240

    77.2

    188-190

    120ⅹ120

    80

    132

    39

    184-192

    65.8

    148-150

    150ⅹ150

    60

    109

    41.7

    138-144

    50.0

    138-142

    165ⅹ165

    45

    109

    50.1

    95-104

    45.1

    78-80

    165ⅹ165

    50

    104

    45.6

    110-115

    45.6

    88-90

    180ⅹ180

    45

    96

    46.4

    99-104

    41.5

    78-80

    180ⅹ180

    50

    91

    42

    115-120

    41.7

    88-90

    200ⅹ200

    40

    87

    46.9

    81-82

    43.0

    68-70

    200ⅹ200

    50

    77

    37

    115-120

    42.0

    88-90

    230ⅹ230

    35

    75

    46.7

    72-76

    37.0

    50-67

    250ⅹ250

    30

    72

    49.7

    63-64

    30.0

    48-49

    250ⅹ250

    35

    67

    43

    76-78

    32.0

    59-61

    250ⅹ250

    40

    62

    49.7

    82-86

    34.0

    50-80

    270ⅹ270

    35

    59

    39.4

    76-80

    30.0

    58-70

    290ⅹ290

    20

    68

    41.7

    43-44

    18.4

    29-30

    300ⅹ300

    30

    55

    38

    66-68

    28.0

    40-59

    325ⅹ325

    23

    55

    49.8

    49-53

    25.4

    38-39

    325ⅹ325

    28

    50

    41.2

    63-64

    26.4

    50-51

    325ⅹ325

    30

    48

    38

    66-68

    24.0

    40-59

    350ⅹ350

    25

    48

    43

    52-54

    18.7

    41-50

    400ⅹ400

    18

    46

    51.3

    36-40

    20.0

    28-30

    400ⅹ400

    23

    41

    40.7

    50-54

    19.0

    35-48


    4. Stainless Steel Square Screen Printing Mesh Application


    Stainless steel printing silk mesh is suitable for direct plate making and curved surface substrate , such as glass , ceramic , metal , plastic , rubber , printing circuit , etc .

    It is especially suitable for use in harsh environment, multi-color overprinter , batch printing , step printing and precision printing
